360 Degree Rotating Pvc Welding Gun Hand Held Powerful Extrusion

360 Degree Rotating Pvc Welding Gun Hand Held Powerful Extrusion

  • 360 Degree Rotating Pvc Welding Gun Hand Held Powerful Extrusion
  • 360 Degree Rotating Pvc Welding Gun Hand Held Powerful Extrusion
360 Degree Rotating Pvc Welding Gun Hand Held Powerful Extrusion
Product Details:
Place of Origin: China
Brand Name: ZEMO
Certification: CE, ISO
Model Number: SMD-NS600C
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: AL boxes + carton
Delivery Time: 3-5 days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now
Detailed Product Description
Product Name: PVC Material Extrusion Welder Voltage: 220V 50/60HZ
Condition: New Extruding Motor Power: 800W
Hot Air Power: 1600W Welding Rod Heating Power: 800W
Air Temp.: 20-620 ℃ Adjustable Extruding Volume: 2.0KG/h
Welding Rod Diameter: 3.0-4.0mm Driving Motor: Hitachi
High Light:

360 Degree Rotating Pvc Welding Gun

,

Powerful Pvc Welding Gun

,

360 Degree Rotating Hand Held Welding Gun

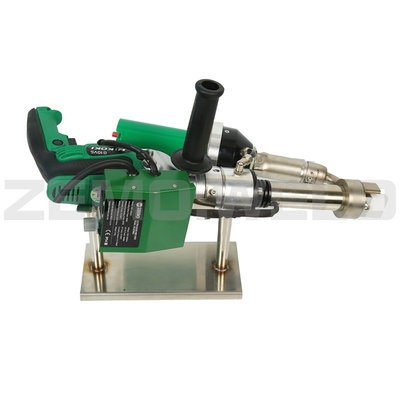

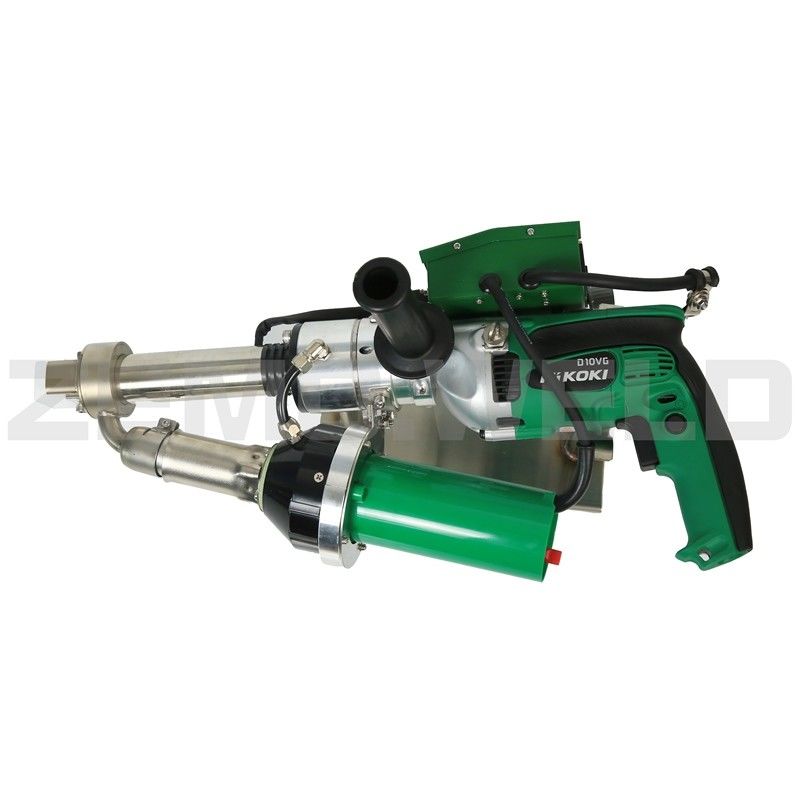

PVC Material Extrusion Welder Description



PVC Material Extrusion Welder is  the first one in China that has functions of double independent heating systems, digital display controller, 360 degree rotating welding head, motor cold start protection, which is applicable to welding PE,PP,PVC,PVDF and other hot melt material.



They are two independent systems,one is for preheating raw material,another is for welding rod extrusion. Reasonable structure, convenient operation, continuous welding, high working efficiency, powerful extrusion, to make the weld strength is greatly improved,It is the ideal product for a variety of thermoplastic welding processing.



PVC Material Extrusion Welder Specification

Product Name  PP Extrusion Welder
Model
SMD-NS600C
Input voltage
220V
Frequency
50/60Hz
Extruding power
800W
Hot air power
1600W
Welding rod heater power
800W
Air Temperature
20-620℃
Extruding temperature
50-380℃
Extruding volume
2.0 - 2.5Kg/h
Welding rod diameter
3 - 4 mm
Weight
6.9 Kg
Driving motor
HIKOKI
Materials thickness
1 - 20mm

360 Degree Rotating Pvc Welding Gun Hand Held Powerful Extrusion 0

360 Degree Rotating Pvc Welding Gun Hand Held Powerful Extrusion 1360 Degree Rotating Pvc Welding Gun Hand Held Powerful Extrusion 2
RFQ


Q: Are you trading company or manufacturer ?

A: We are factory. Q: How long is your delivery time?

A: Generally it is 3-5 days if the machines are in stock. If big worshop fitting machine or special machine, it will take about 5 to 40 days

Q: Can you design and produce special machines according to customer requirement ?

A: Yes, we have strong technical capacity, can develop any new products by ourselves totally.


PVC Material Extrusion Welder Accessories:
360 Degree Rotating Pvc Welding Gun Hand Held Powerful Extrusion 3
