| Place of Origin: | China |
| Brand Name: | ZEMO |
| Certification: | CE , ISO |
| Model Number: | SMD-B335/90H |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Polywood cases |
| Delivery Time: | 3-7 working days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300 set/month |
| Product Name: | 355MM 110V HDPE Butt Welding Machine | Pipe Size: | 90-355MM |
|---|---|---|---|
| Heating Plate Max. Temp.: | 270 ℃ | Temp.deviation In Surface (170-250 ℃): | ≤±7℃ |
| Pressures Adjustable Ranges: | 0-6.3Mpa | Working Voltage: | 220V , 50/60HZ , Single Phase |
| Heating Plate Power: | 3.5KW | Planing Tool Power: | 1.1KW |
| Hydraulic Unit Power: | 0.75KW | Total Power: | 5.35KW |
| Weight: | 216KG | Guarantee: | 24 Months |
| High Light: | 355mm HDPE Butt Welding Machine,110V HDPE Butt Welding Machine,1.1KW Hydraulic Butt Fusion Machine |
||

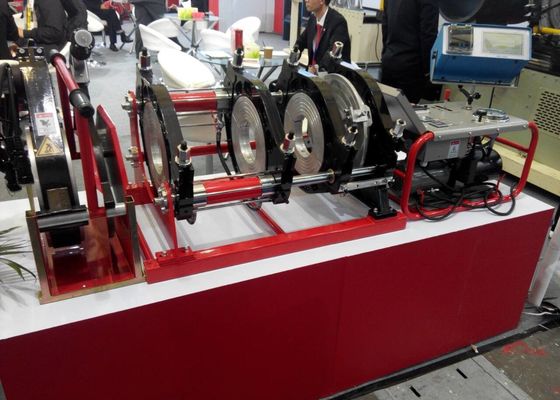

This HDPE Butt Welding Machine is able to weld pipes and fittings with material pe pipe,hdpe pipe , operation easily and suitable for any complex work condition. It Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool & heating plate, and optional parts.
Welding Introduction For HDPE
1. Fix the proper clamps on the machine rack.
2. Put HDPE pipes on the clamps and tighten the bolts.
3. Mill the end of the HDPE pipes with the facer.
4. Put the heater plate on the machine rack and heat the pipes for proper time.
5. Remove the heater plate and connect the HDPE pipes.
HDPE Butt Welding Machine Specification
| Product Name | HDPE Butt Welding Machine | |
|
Model
|
SMD-B355/90H (3-14")
|
|
|
Pipe size (Inch)
|
90-355MM |
|
| Application | PE Pipe & Fitting Welding | |
|
Heating plate Max. Temperature |
270℃
|
|
|
Temp.deviation in surface (170-250 ℃)
|
≤±7℃
|
|
|
Pressures Adjustable Ranges
|
0-6.3Mpa
|
|
|
Working Voltage
|
220V /110, 50/60HZ , single phase
|
|
|
Heating plate power
|
3.5KW
|
|
|
Planing tool power
|
1.1KW
|
|
|
Hydraulic unit power
|
0.75KW
|
|
|
Total Power
|
5.35KW
|
|
|
Weight
|
260KG
|
|
|
Packing
|
Cases
|
3 plywood cases
|
|
Volume
|
1.07CBM
|
|
FAQ :
1. Who are we?
Zemo Welding Machinrey Co.,LTD (ZEMOWELD) is one of comprehensive manufacturer of Thermoplastic Welding Equipment and an experienced professional exporters in China
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Butt Fusion Machine,Electrofusion Welding Machine,PPR Welding Machine,Automatic Plastic Welding Machine,Workshop Fitting Welding Machine,HDPE Fitting,Plastic Pipe Tools
4. Why should you buy from us not from other suppliers?
1. Welding equipment has CE,ISO,BV, SGS certification, as well as domestic welding industry laboratory CNAS certification. 2. 20 years of experience in welding machine export sales 3. Welder supply range from 40mm to 3000mm
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Russian
Contact Person: Jack Lu
Tel: 13933031824
Fax: 86-0311-80826269
