| Place of Origin: | China |
| Brand Name: | ZEMO |
| Certification: | CE , ISO |
| Model Number: | SMD-B315/90H (3-12") |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Polywood cases |
| Delivery Time: | 3-7 working days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300 set/month |

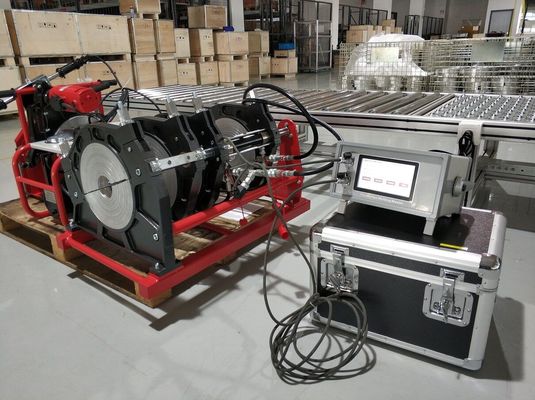

| Product Name: | 120V ASTM F2620 Hdpe Pipe Fusion Welding Machine | Pipe Size (Inch): | 3 -12" |
|---|---|---|---|
| Heating Plate Max. Temp.: | 270 ℃ | Temp.deviation In Surface (170-250 ℃): | ≤±7℃ |
| Pressures Adjustable Ranges: | 0-6.3Mpa | Working Voltage: | 220V , 50/60HZ , Single Phase |
| Heating Plate Power: | 3.5KW | Planing Tool Power: | 1.1KW |
| Hydraulic Unit Power: | 0.75KW | Total Power: | 5.35KW |
| Weight: | 216KG | Guarantee: | 24 Months |
| High Light: | 120V HDPE Butt Fusion Welding Machine,ASTM pe pipe butt fusion welding machine,F2620 hdpe pipe fusion equipment |
||
Butt fusion is a sensitive process, which is why all fusion parameters have to be coordinated to create a homogenous joint with consistently high welding quality. Zemo butt fusion machines minimize distortion, maintain a high level of stability and keep the butt fusion process as short as possible. All heating elements are exceptionally reliable and the units are easy to operate via an intuitive control panel.
Hdpe Pipe Fusion Welding Machine Specification
| Product Name | 220V IPS12" Butt Fusion Welding Kits | |
|
Model
|
SMD-B315/90H (3-12")
|
|
|
Pipe size (Inch)
|
3-12 Inch |
|
| Application | PE Pipe & Fitting Welding | |
|
Heating plate Max. Temperature |
270℃
|
|
|
Temp.deviation in surface (170-250 ℃)
|
≤±7℃
|
|
|
Pressures Adjustable Ranges
|
0-6.3Mpa
|
|
|
Working Voltage
|
220V /110, 50/60HZ , single phase
|
|
|
Heating plate power
|
3.5KW
|
|
|
Planing tool power
|
1.1KW
|
|
|
Hydraulic unit power
|
0.75KW
|
|
|
Total Power
|
5.35KW
|
|
|
Weight
|
216KG
|
|
|
Packing
|
Cases
|
3 plywood cases
|
|
Volume
|
0.99CBM
|
|
FAQ :
1. Who are we?
Zemo Welding Machinrey Co.,LTD (ZEMOWELD) is one of comprehensive manufacturer of Thermoplastic Welding Equipment and an experienced professional exporters in China since 2003 .
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Butt Fusion Machine,Electrofusion Welding Machine,PPR Welding Machine,Automatic Plastic Welding Machine,Workshop Fitting Welding Machine,HDPE Fitting,Plastic Pipe Tools
4. Why should you buy from us not from other suppliers?
1. Welding equipment has CE,ISO,BV, SGS certification, as well as domestic welding industry laboratory CNAS certification. 2. 20 years of experience in welding machine export sales 3. Welder supply range from 40mm to 3000mm
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Russian
All designed according to ISO21307:2011(E),ISO12176-1 and DVS2207/1(08/2007)
International warranty: 24months.
Any parts broken or does not work under normal operating,we are free to provide.
