| Place of Origin: | China |
| Brand Name: | ZEMO |
| Certification: | CE, ISO |
| Model Number: | SHG-MA335/90H |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | negotiation |
| Delivery Time: | 7-15 working days after payment |
| Payment Terms: | D/A, L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 SETS/Week |
| Product Name: | Fitting Welding Machine | Size: | 90-315MM |
|---|---|---|---|
| Voltage: | 220V 50/60Hz | Application: | HDPE Pipe Welding |
| Peak Electric Power: | 100A | Automatic Grade: | Automatic |
| Control Mode: | Constant Voltage . | Power: | 7.25KW |
| Welding Voltage: | 8/44V | Tem.Deviation In Surface (170-250:: | ≤±7 ℃ |
| High Light: | Pipe Fitting Welding Machine,Hdpe Fitting Welding Machine,7.25KW Hdpe Electrofusion Welding Machine |
||

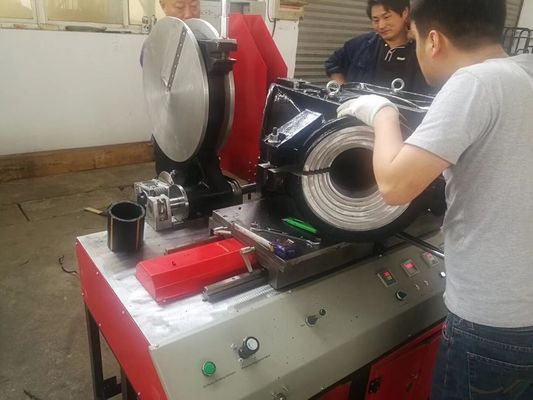

1. Workshop fitting welding machine suitable for fabricating PE reducing tee in workshop.
2. Base on the integrated design, if welded different fitting you just need to replace the corresponding fixture.
3. Heating plate uses independent temperature control system, removable PTFE coated.
4. Electric facer with safety limit switch can avoid the milling cutter accidental starting.
| Model | SHG-MA160 | SHG-MA200 | SHG-MA250 | SHG-MA315 | SHG-MA355 |
| Welding range(mm) | DN63mm-160mm | DN63mm-200mm | DN90mm-250mm | DN90mm-315mm | DN160mm-355mm |
| Heating plate temperature | 270°C | 270°C | 270°C | 270°C | 270°C |
| Heating plate surface temperature(170-250°C) | <±5°C | <±5°C | <±5°C | <±5°C | <±5°C |
| Pressure adjustment range | 0-6.3MPa | 0-6.3MPa | 0-6.3MPa | 0-6.3MPa | 0-6.3MPa |
| Working Voltage | 220V | 220V | 220V | 220V | 220V |
| Heating plate power | 1.5KW | 1.8KW | 2.3KW | 3.1KW | 3.5KW |
| Cutter power | 1.0KW | 1.0KW | 1.1KW | 1.1KW | 1.1KW |
| Hydraulic station power | 0.75KW | 0.75KW | 0.75KW | 0.75KW | 0.75KW |
1. Fix the proper clamps on the machine rack.
2. Put HDPE pipes on the clamps and tighten the bolts.
3. Mill the end of the HDPE pipes with the facer.
4. Put the heater plate on the machine rack and heat the pipes for proper time.
5. Remove the heater plate and connect the HDPE pipes.
1. Special clamps for welding flange stub
2. Special clamps for short spigot fitting
3. Special clamps for welding Y shape (45° and 60°) fittings
4. Data Logger and Printer
Suitable for welding pipe / fittings for the transport of gas, water and for weling fire sprinkler systenm( HDPE, PP, PP-R couplings from 8 to 48 V)
After-sales Service:
All Machine Quality Guarantee: 24 months.--If any parts broken or does not work under normal operating,
we provide them for free
